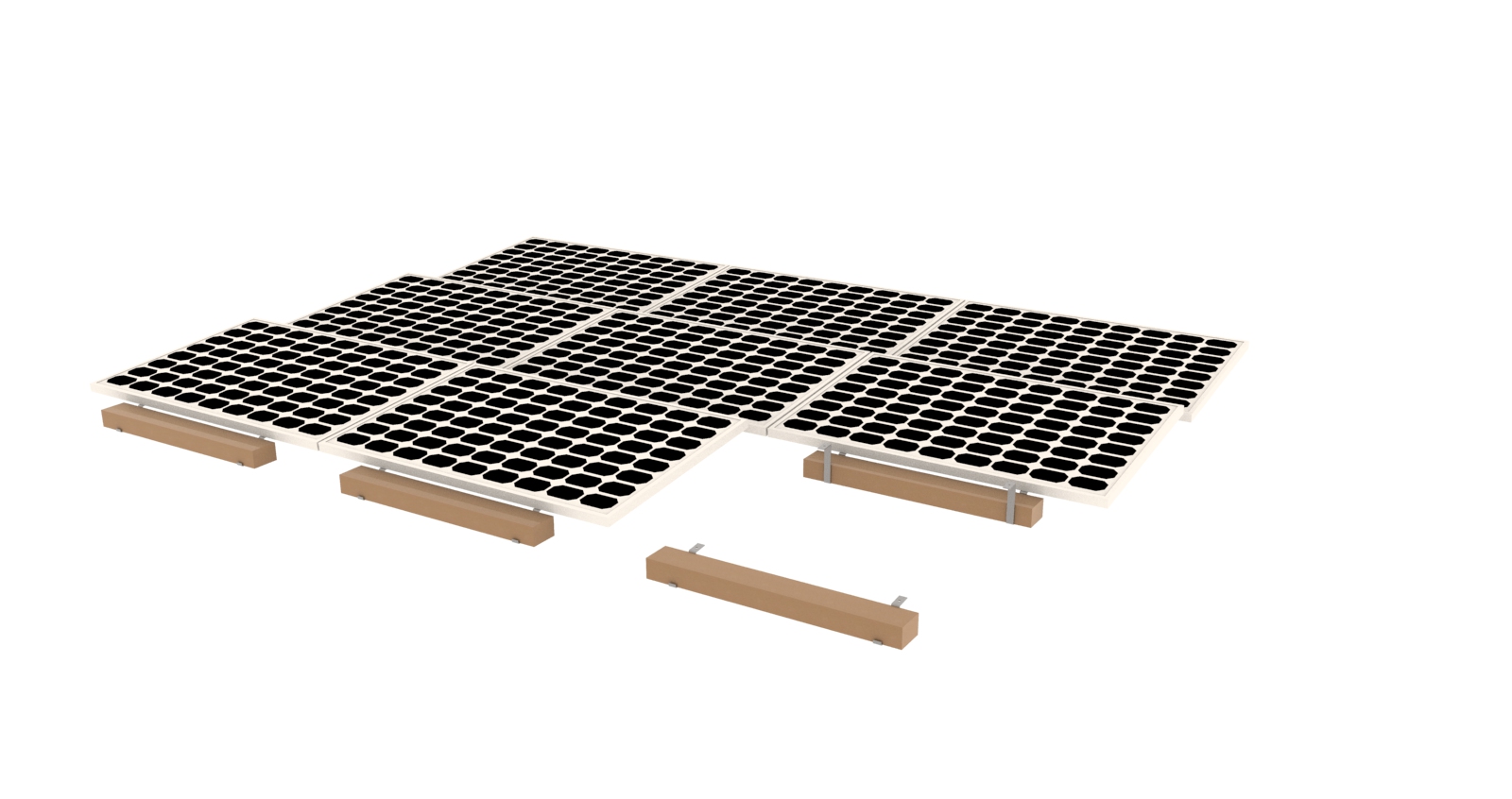

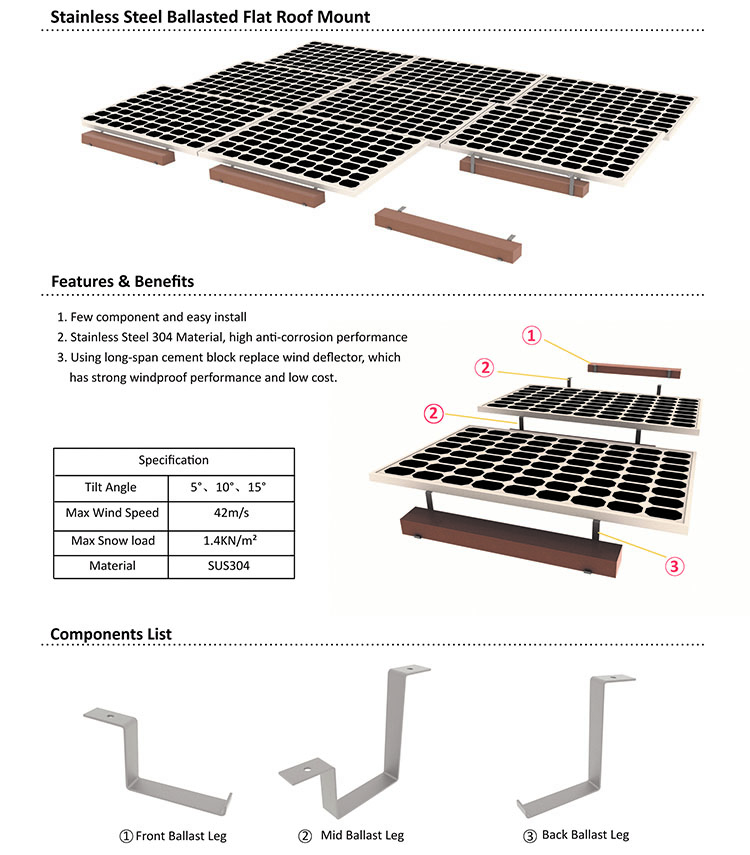

Stainless Steel Ballasted Flat Roof Racking System

Product Description
  Stainless Steel Ballasted Flat Roof Racking System is specifically engineered for non-penetration roofs, which secures the array without damaging the flat roof. This economical system requires no roof penetration and made from lightweight and strong aluminum construction and come with pre-assembled components, they are just require few tools, it is quick and easy to install.

Features & Benefits
  1. Few component and easy install
  2. Stainless Steel 304 Meterial, high anti-corrosion performance
  3. Using long-span cement block replace wind deflector, which has strong windproof performance and low cost.

Technical Information
Installation Site: Flat Roof
Module Orientation: Landscape
Material: Aluminum 6005-T5
Max Wind Speed: <60m/s
Max Snow Load:  <1.4 KN/M2
Tilt Angle:  5°~ 30°
Warranties：12 Years
