Helical Piers Ground Screw Pile

Product Description
 ground screw pile foundation is a robust and sustainable alternative to traditional concrete foundations, removing the need for excavation and concreting. Other applications for the ground screw foundation include signage, timber construction, fencing.

Technical Information

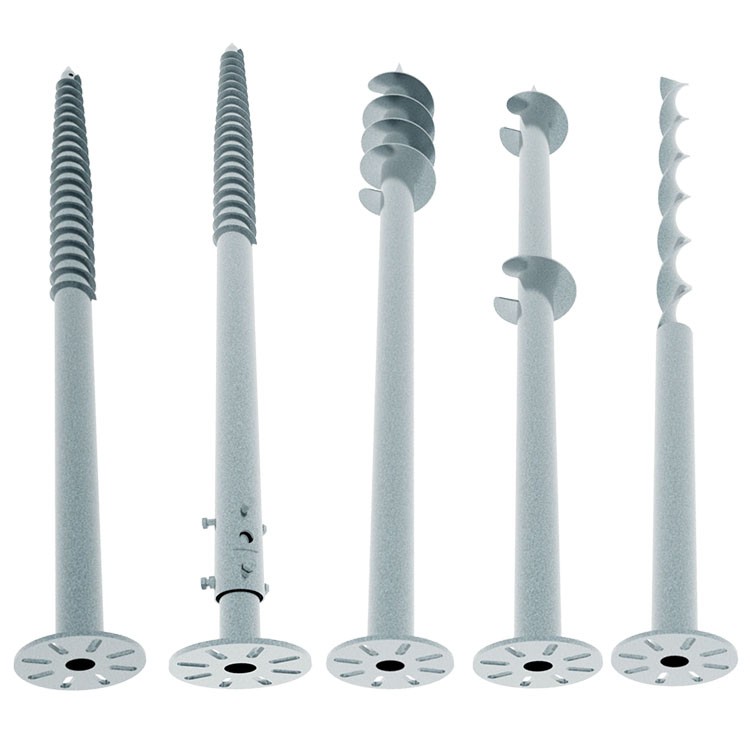

Ground Screw Type	Adjustable ground screw, flange ground screw, non-flange ground screw, etc.
Material	Hot dipped galvanized Q235, carbon steel
Ground Screw Length	600mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm, 2000mm, 2500mm, 3500mm, or as required
Wall Thickness	2.5mm, 2.75mm, 3.0mm, 3.25mm, 3.5mm, 4.0mm, or as required
Ground Screw Diameter	48mm, 60mm, 76mm, 89mm, 114mm, or as required
Flange Type	D180x8mm, D200x8mm, D220x8mm, or as required
Service Life	More than 25 years life service
Foundation	sandy, loosening soil, tight soil, etc
Package	Steel Pallet, or as required
