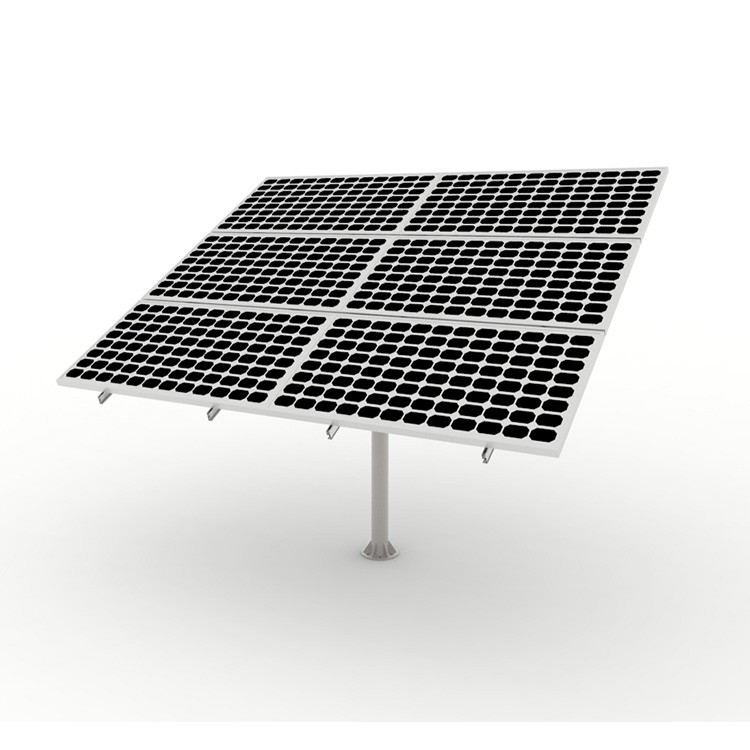

Pole Solar Ground Mounting System

Product Description
Single Pole Ground Mount is designed to install quickly and provide a secure strength welded steel components and corrosion resistant hardware for long term reliability.

Features
Rails are made from 6005-T5 Aluminum, the other parts are made from galvanized steel
Suitable for different regions, such as low-cost concretes and high wind and heavy snow regions
Simple and fast installation: Parts have been high pre-assembly on factory to save your installation time
Concrete foundation can be acceptable
High quality galvanized steel material
Technical Information

Install Site	Open Field or Ground
Tilt Angle	5°~60°
Max Wind Speed	60 m/s
Snow Load	1.5KN/m²
Standard	TUV &ASNZS 1170
Material	AL6005-T5 & Q235
Warranty	12 years

▲：Galvanized Steel Solar Ground Mount ▼：Pile Solar Ground Racking Structure System
