Solar Farm Ground Mount System
Product Description

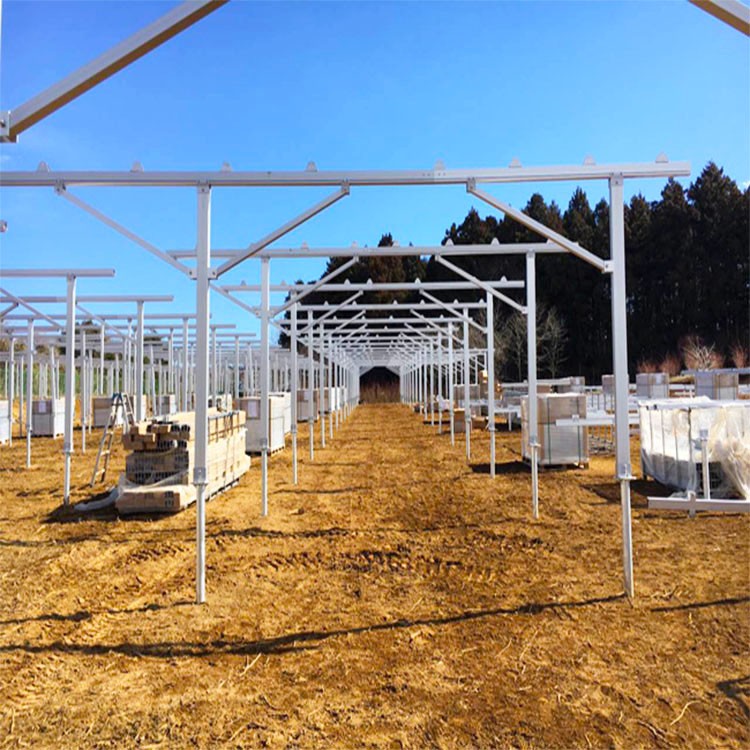

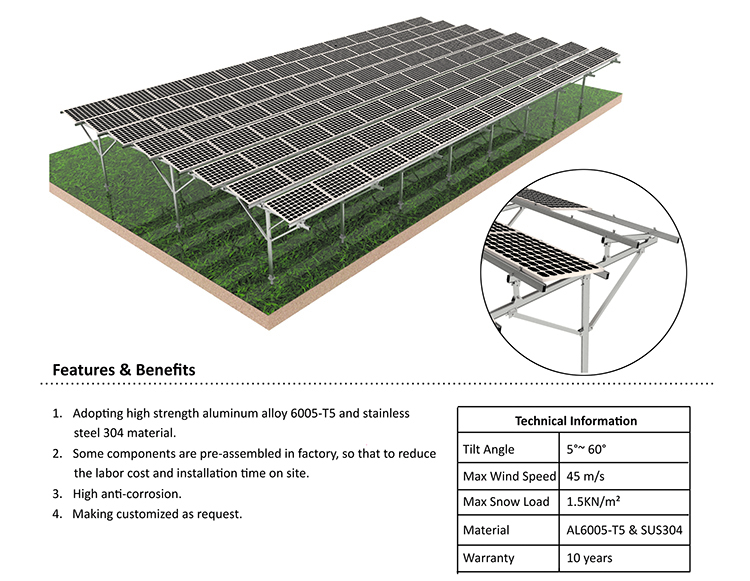

agriculture ground racking system is high above the ground, which does not affect the growth of the underlying crops, but also make full use of solar power. The surface of the racking is high anodized and is not easy to rust. Farm Mounting System adopts high strength aluminum alloy 6005-T5 and stainless steel 304
Technical Parameters
| Installation Site | Agricultural Farm or Open Terrain |
| Wind Load | 45m/s |
| Snow Load | 30psf(1.4kN/m2) |
| Tilt Angle | 5°~30° |
| Foundation Type | Concrete Block or Ground Screw |
| Material | Aluminum Alloy 6005-T5 & Stainless Steel 304 |
To get a quote and design for your solar farm project, we need to get below information:
1. Panel dimension: length, width and thickness?
2. Tilt angle?
3. Panel layout? How many panels in a column, how many panels in a row? How many solar panels in total?
4. Max wind speed on project site?
5. Max snow load on project site?
6. Ground clearance: the height from the bottom of solar panel to the ground?
7. Foundation: ground screw pile foundation or concrete foundation?
